275/K4 900SA

Semi-automatic bollards with integrated hydraulic unit

Certifications

Application areas

Standard configuration

Bollard
Vehicle access control device in anthracite grey painted steel.

Foundation box
Underground structure housing the bollard.

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Cylinder material	S355JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel
Cylinder diameter	273mm
Cylinder height	900mm
Cylinder thickness	10mm
Movement principle	Rising: with a cordless screwdriver - Lowering: manual opening of the hydraulic valve A commercially available cordless screwdriver with a power of at least 31 Nm / 5.0 Ah is suitable
Cylinder normal steel finish	Anti-corrosion treatment - grey anthracite standard painting
Cylinder stainless steel finish	Grey anthracite standard painting or brushing
Reflecting adhesive strip	Standard - height 55mm
Rising time	11s
Lowering time	4,5s
Emergency lowering	Standard
Safety reversal	Standard
Connection line for LED lighting strips/heating element (optional	Standard 10m (max 80m - with heating element max 50m)
Hydraulic pump	Built-in the bollard
Protection class	IP 67

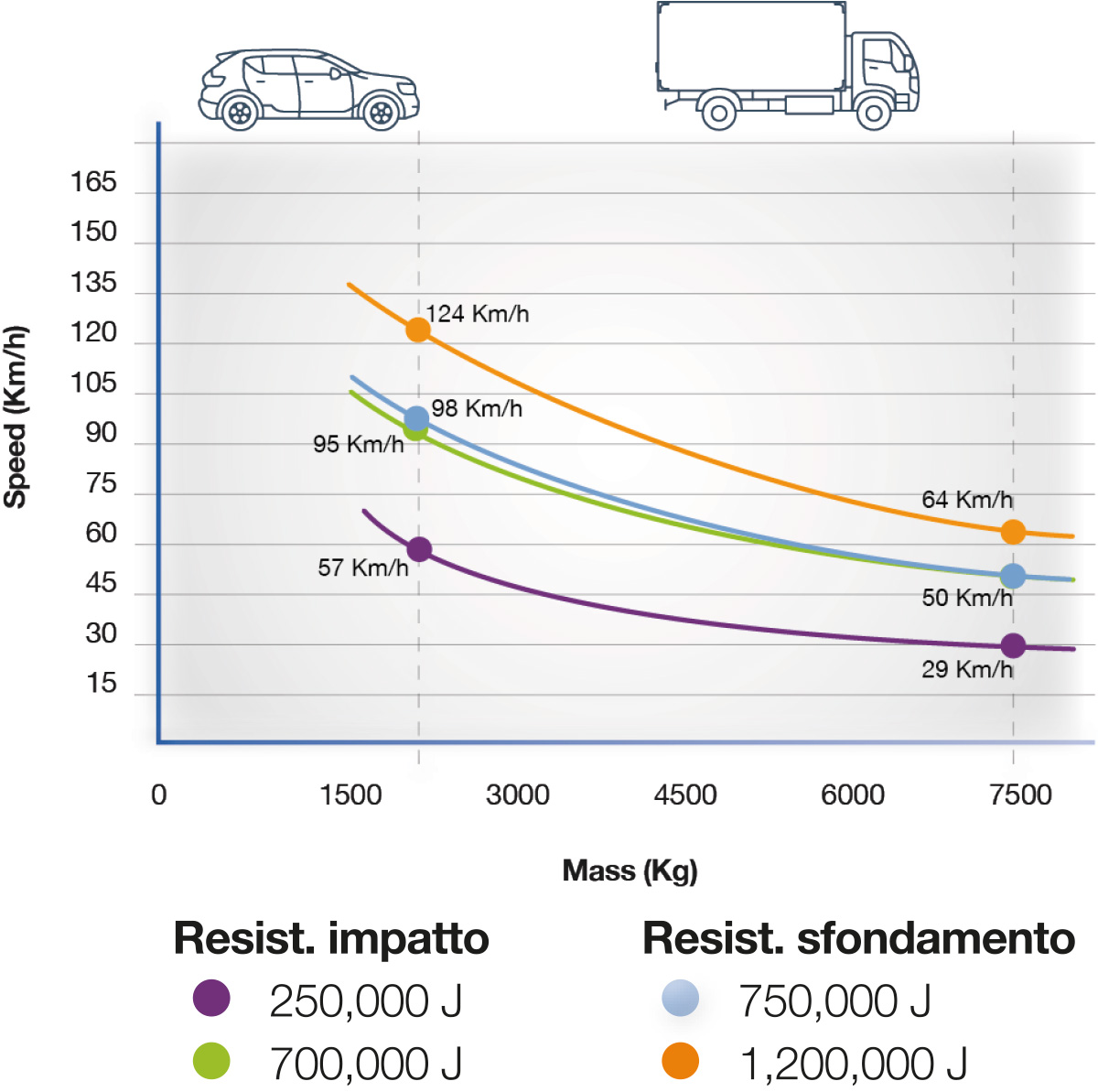

Impact resistance	250.000 J
Breakout resistance	750.000 J
Certified to	PAS68, IWA 14-1, ASTM M30 (K4)
Conformig with	-
Nominal operating temperature	-40°C +70°C (for low temperatures see heating resistance)
Load class (EN124)	D400
