Removable bollards with reinforced basement - 275/M50RM 1200

275/M50RM 1200

275/M50RM 1200

Removable bollards with reinforced basement

Variant of the RM line with reinforced base, equipped with a secure and integrated unlocking system.

The 275/M50 RM 1200 bollard is the model in this series that best combines maximum impact resistance with strong visual deterrence. Thanks to its reinforced base, this product can stop heavy vehicles up to 7,500 kg at 80 km/h. Among the unique advantages of this series is the reduced excavation depth, which simplifies installation and ensures protection in sensitive areas where excavation space is limited.

Compliance

  • PAS68

    PAS68

  • IWA 14-1

    IWA 14-1

  • ASTM

    ASTM

Standard configuration

Bollard
Vehicle access control device in anthracite grey painted steel.
Basament
Underground structure housing the cylinder.

Technical data

Cylinder material

S355JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel

Cylinder diameter

271mm

Cylinder height

1200mm

Cylinder thickness

23mm

Cylinder normal steel finish

Anti-corrosion treatment - grey anthracite standard painting

Cylinder stainless steel finish

Grey anthracite standard painting or brushing

Reflecting adhesive strip

Standard - height 55mm

Cylinder weight (without base)

243 kg

Base weight

184 kg

Security lock

Euro profile cylinder lock incl. 2 keys

Perimetral crown (circular)

Included in the supply

Impact resistance

250.000 J

Breakout resistance

2.000.000 J

Load class (EN124)

D400

In compliance with

PAS68, IWA 14-1, ASTM M50 (K12)

Dimensions

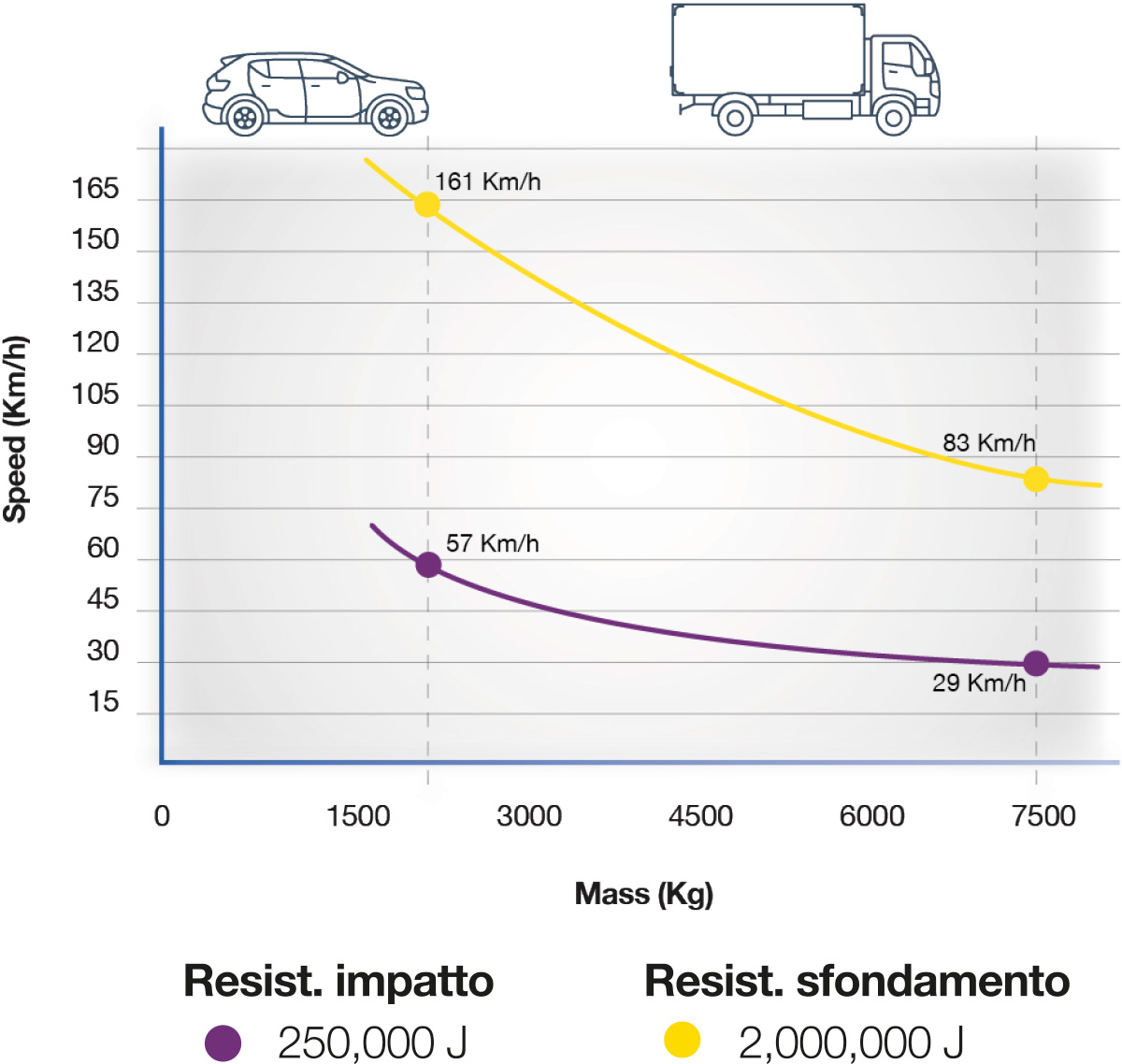

Crash test

Available finishes

  • RAL painting

  • Brushing

  • Stone mantle

  • Anti-corrosion marine treatment

Safety and visibility

  • Reflecting strip

  • LED lighting strip

Special design

  • RAL painted cover

  • Custom inclination

Datasheet
