275/K4FB 900F

Fixed bollards with reinforced basement

Model of the FB Series, consisting of high-security fixed bollards equipped with a reinforced foundation for protection against trucks up to 7,500 kg.

The fixed bollard 275/K4FB 900 F represents the meeting point between protection and versatility of use. Certified ASTM, PAS68 and IWA14 for impacts up to 50 km/h, it ensures an appropriate level of safety for urban and perimeter contexts. It is available with knurling for a more refined design, with LEDs for improved nighttime visibility, and with anti-corrosion treatment for greater durability in saline environments.

Technical data
Dimensions

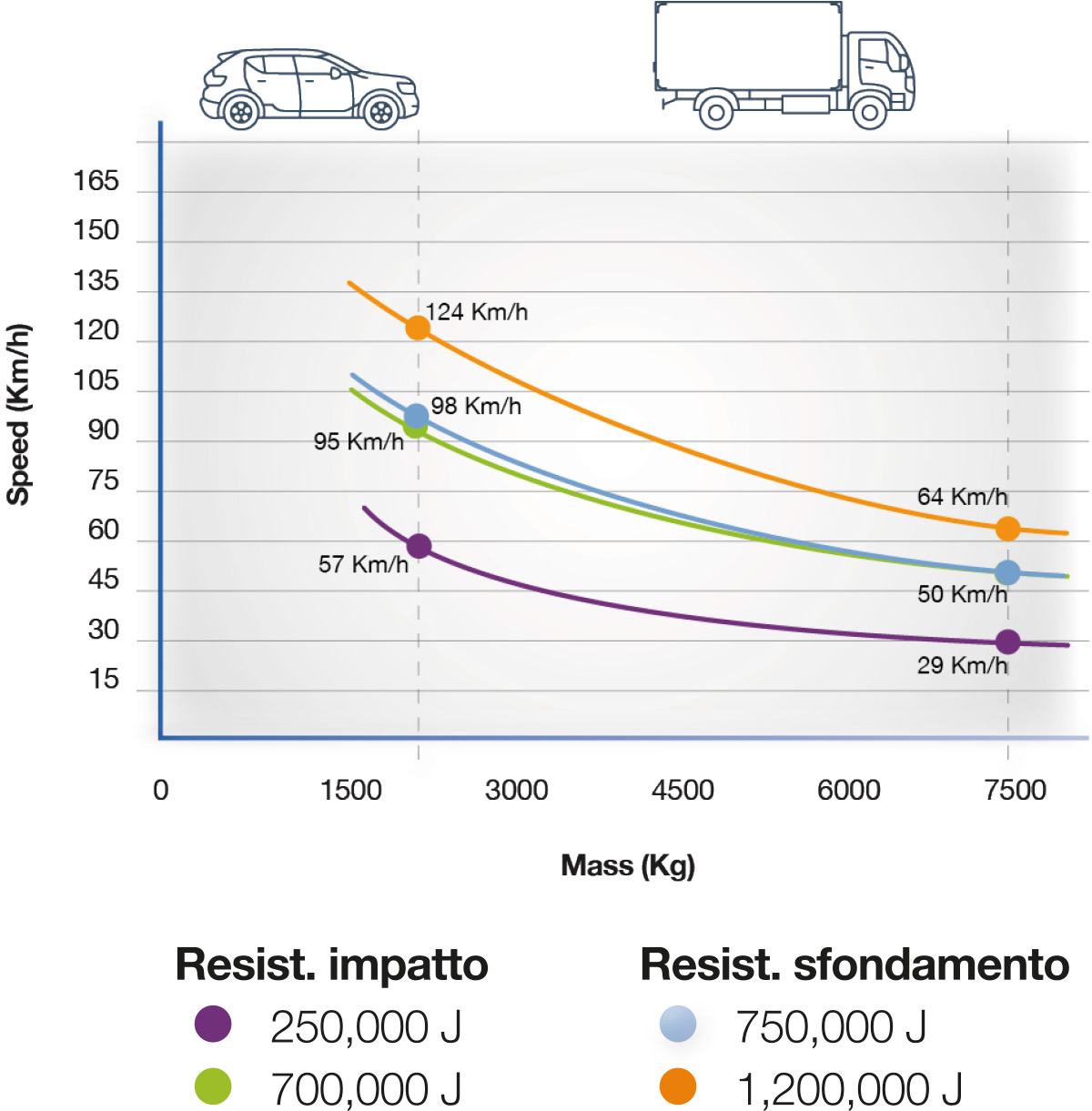

Crash test
Datasheet

Certifications

ASTM
IWA 14-1
PAS68

Application areas

Pedestrian area protection

Access control for residential and corporate driveways

Storefront protection

Protection of sensitive or high-security areas

Restricted-area boundary control

Theft protection

Standard configuration

Bollarde
Anthracite grey painted steel device for controlling vehicle access with reinforced base.

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Finishes
Safety
Design

Technical data

Cylinder material	S355JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel
Cylinder diameter	273mm
Cylinder height	900mm
Cylinder thickness	10mm
Cylinder normal steel finish	Anti-corrosion treatment - grey anthracite standard painting
Cylinder stainless steel finish	Grey anthracite standard painting or brushing
Reflecting adhesive strip	Standard - height 55mm
Connection line for LED lighting strips	Standard 10m (max 80m)
Protection class	IP 67
Impact resistance	250.000 J
Breakout resistance	750.000 J
Certified to	PAS68, IWA 14-1, ASTM M30 (K4)
